Walk through the admin cockpit of SAP Cloud Platform Mobile Services

Use your browser to open the SAP Cloud Platform Mobile Services Cockpit in your Cloud Foundry Trial environment.

Since there is no directly accessible link in the SAP Cloud Platform Cockpit, it is recommended to store the Mobile Services cockpit URL as a bookmark in your browser.

URL: https://mobile-service-cockpit-web.cfapps.eu10.hana.ondemand.com/

You may be asked to provide your organization and space.
If there is more than one option, please choose the trial similar to the screenshot.

The Mobile Services Cockpit should open.
On the left-hand side, you see the menu to navigate through the various options.

Click on the “Features” menu item to open the available features that can be added to a mobile app configuration.
Browse through the list and read some descriptions to understand what the various features provide to you.

In the next steps we will create a new mobile app configuration.
Select “Mobile Application” > “Native/Hybrid” from the left-hand menu. And click “New” in the upper right corner.
Please note that there is also an “Import” feature that lets you import app configurations from other Cloud Foundry spaces.

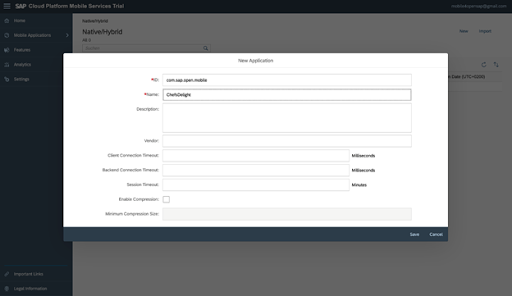

A dialog will appear and ask you for certain global app parameters. Provide the values as seen in the screenshot.
Mobile App configuration on Cloud Foundry will be physical apps on the platform itself. Similar to a deployed Java application. You need respective quota to create a mobile app. Also, the mobile app can be configured with individual timeouts as any other Cloud Foundry based application.
Click “Save” to finish the creation of your mobile app configuration.

While Mobile Services deploys your mobile app to your space you see a yellow “Creating” indicator on the upper right-hand side of the screen. After a while, and by refreshing the page the indicator will change to green and shows “Started”.
Your app is ready to go, but you can’t do much at the moment with it. We need to add more features to it.

The “Mobile Settings Exchange” feature is automatically applied to all of your Cloud Foundry (CF) based mobile apps. It’s a mandatory feature that is taking care of the app and user registration process.

We will now add more features to the application, so that our mobile app can benefit from it.
Click on the “+” sign right to “Assigned features”. This will open a list of available features – the same we already know from the “Feature” overview.
Choose “Mobile App Update” and click “OK”.

A dialog will show up and want you to confirm that this change needs to restart the app we have deployed into your CF space. Since we are in a development environment we can simply select “Don’t show me again” and confirm.
After a few seconds the new feature will be added to your mobile app.

After adding the feature, you will be directly sent to the feature specific settings page for your mobile app configuration. You can see where you are currently on the breadcrumb navigation on top of the screen.
Click on “com.sap.open.mobile” to navigate back to your app config overview.

Repeat these steps to add all the features to our mobile app as seen on the screenshot.
We need:

·       Mobile App Update

·       Mobile Client Log Upload

·       Mobile Offline Access

·       Mobile Connectivity

·       Mobile Settings Exchange

Click “Logs” under the “Analytics” menu to open the Event Log overview.
You see some information about what happened in the cockpit.
Click on the first row of the list to navigate to the details screen.

The event details screen shows you more information about what happens in Mobile Services – not only in the cockpit but also during you operate your mobile apps. It’s the first thing you should check if the mobile app is not behaving correctly.
It shows you also a list of related events, that help to identify the root cause of many problems.
The event message will also contain hints on how to solve an error condition. In our case, the information does not contain such a hint, since we do not see an event of level “Error”.

Click on “Server Data” in the left-hand menu to open the server statistics.
When you have more apps and more usage on the server you will see there the data, that the server collects during runtime.
